Engineering Fire Resistance With Precision-How Fire Rated Doors Work
As a leading China fire-rated door manufacturer, YK Door Industry Co., Ltd. is committed to producing high-performance fire safety solutions that adhere to global standards. Central to our mission is the steel fire door—a critical component in modern fire protection systems. But how exactly do these doors function to resist flames, contain smoke,How Fire Rated Doors Work, and save lives?
Understanding how fire doors operate requires a closer look at their materials, structure, and mechanical systems. Metal fire doors, particularly those manufactured by China YK fire rated door manufacturer, are engineered to act as robust barriers during emergencies. These doors are constructed using high-quality fire-resistant materials, such as galvanized steel sheets, stainless steel, and fire-rated insulation cores, each selected based on certified fire-resistance performance and compliance with global testing protocols.
To meet international safety benchmarks, steel fire resistance doors must pass rigorous testing procedures in accordance with UL 10C (Underwriters Laboratories) and EN 1634-1 (European CE standard). These fire door testing standards assess critical parameters such as structural stability, flame penetration resistance, and insulation capacity under high-temperature conditions.
Moreover, certified stainless steel fire doors are labeled according to their fire resistance rating—FD30, FD60, FD90, or FD120—indicating how long they can maintain integrity during a fire. Regular inspection and maintenance are equally vital: industry regulations typically recommend that fire doors be inspected every six months, or more frequently in high-traffic or high-risk areas, to ensure full functionality and compliance with local fire codes.
By combining precision manufacturing, compliance with fire door certification standards, and periodic inspection, YK metal fire doors offer reliable protection and peace of mind. These doors are not only a passive component of fire safety—they are critical life-saving infrastructure in both commercial and residential buildings.
1. Fire-Resistant Material Composition
Understanding how fire rated doors work begins with examining their material composition. At the heart of every steel fire resistance door lies a careful selection of materials engineered for optimal performance under extreme heat. Unlike ordinary doors, a stainless steel fire door or galvanized steel fire door incorporates fire-rated core materials—commonly including reinforced gypsum, perlite board, or magnesium oxide board. These cores are designed to expand or insulate when exposed to fire, thereby reducing heat transfer and slowing structural compromise. Housed securely within precision-formed steel sheets, these core materials provide both excellent thermal insulation and mechanical stability
The outer shell of the door, typically crafted from cold-rolled galvanized steel or stainless steel, is engineered to resist warping and deformation, even during prolonged exposure to high temperatures. This layered structure allows the fire door to maintain its integrity, ensuring it remains securely shut and continues to compartmentalize fire and smoke.
Thanks to this combination of high-quality fireproof materials and advanced manufacturing techniques, metal fire doors are ideally suited for high-risk environments such as industrial plants, medical facilities, and multi-story residential buildings, where the need for certified fire protection is critical.
The outer shell, typically made from cold-rolled steel or stainless steel, resists warping even under sustained fire exposure, allowing the door to maintain integrity and delay heat penetration. This durability makes metal fire doors an ideal choice for high-risk environments such as factories, hospitals, and multi-story residential buildings.
1. Shaft, Exit Enclosures, and Exit Passageway Walls
| Requirement Category | Specification |
|---|---|
| Required Wall Assembly Rating | 2 hours |
| Minimum Fire Door/Shutter Rating | 1-1/2 hours |
| Door Vision Panel Size | ≤100 sq. in. → Marking: D-H-90 >100 sq. in. → Marking: D-H-T-90 or D-H-T-W-90 |
| Minimum Sidelite/Transom Rating | Not permitted |
| Fire-Rated Glazing Sidelite/Transom | W-120 (Fire Resistance) |
2. Fire Partitions / Corridor Walls
| Requirement Category | Specification |
|---|---|
| Required Wall Assembly Rating | 1 hour |
| Minimum Fire Door/Shutter Rating | 1/3 hour |
| Door Vision Panel Size | Maximum size tested |
| Fire Door Glazing Marking | D-20 |
| Minimum Sidelite/Transom Rating | 3/4 hour (Fire Protection) |
| Fire-Rated Glazing Sidelite/Transom | D-H-OH-45 (Fire Protection) |
3. Other Fire Partitions
| Requirement Category | 1-Hour Wall | 0.5-Hour Wall |
|---|---|---|
| Minimum Fire Door/Shutter Rating | 3/4 hour | 1/3 hour |
| Door Vision Panel Size | Maximum size tested | Maximum size tested |
| Fire Door Glazing Marking | D-H-45 | D-H-20 |
| Sidelite/Transom Rating | Not applicable | Not applicable |
| Sidelite/Transom Glazing Marking | Not applicable | Not applicable |
🔍 Glazing Marking Code Legend
| Code | Meaning |
|---|---|
| D | Door application |
| H | Hose stream tested |
| T | Temperature-rise rated (insulating glass) |
| OH | Openings in Sidelites and Transoms |
| W | Wall-rated glazing (Fire Resistance level) |
It is worth noting that as fire safety standards continue to evolve, the requirements for fire door materials have become increasingly stringent. In many jurisdictions, the use of traditional honeycomb paper cores in fire-rated doors has been prohibited due to their inadequate performance under extreme heat. Instead, modern fire doors are now equipped with fire-resistant wooden boards that have undergone high-temperature fireproof treatment, including steam curing and chemical processing to enhance their thermal insulation and flame-retardant properties. These upgraded core materials not only comply with updated fire protection codes but also significantly improve the door’s overall fire resistance and durability—making them a reliable choice for buildings with critical fire compartmentalization needs.
2. Smoke-Sealing and Intumescent Technology
Another critical component of the steel fire door system is its smoke containment capability. YK fire-rated doors incorporate intumescent seals—specialized strips that expand rapidly when exposed to high temperatures. These seals fill the microscopic gaps between the door leaf and the frame, effectively creating an airtight barrier against smoke and toxic gases.
In non-emergency conditions, these seals remain inconspicuous, maintaining aesthetic value and ease of use. But in a fire, they activate instantly, preventing the passage of hot air, smoke, and flames from one compartment to another.
3. Structural Adaptations for Heat-Induced Movement（!!!focal point about How Fire Rated Doors Work!!!）
1. In-Depth Analysis of Technical Principles
(1) Chemical and Physical Mechanisms of Intumescent Strips
- Material Composition: Typically made of graphite, silicates, or hydrated minerals, expanding 10-50 times when exposed to heat (~200°C) to form a dense char layer.
- Expansion Mechanism: Chemical reaction (endothermic expansion) vs. physical expansion (e.g., vermiculite-based materials).
- Performance at Different Temperatures: Some high-end intumescent strips remain stable even at extreme temperatures (1000°C+).
(2) Synergistic Role of Fire-Rated Hardware
- Fire-Rated Hinges: Must use steel with a melting point above 800°C; ordinary hinges fail under high heat.
- Automatic Door Closers: Ensure doors shut automatically during a fire to prevent flame spread.
- Fire-Rated Locks: Must pass high-temperature tests to avoid jamming due to thermal deformation (affecting escape).
(3) Structural Design of Fire-Rated Doors
- Multi-Layer Composite Materials: E.g., steel fire doors (outer steel sheet + inner fire-resistant rock wool) or timber fire doors (fire-retardant-treated wood + fire-resistant core).
- Edge Sealing Design: In addition to intumescent strips, silicone fire seals may be used to enhance smoke-blocking.
2. Industry Applications and Special Scenarios
(1) Fire Door Requirements for Different Locations
| Location | Fire Rating Requirement | Special Needs |
|---|---|---|
| Residential Buildings | 30 minutes (Class B) | Aesthetics, e.g., wood-grain fire doors |
| Commercial Towers | 60 minutes (Class A) | High traffic, durable hardware + auto-closers |
| Chemical Plants | 90-120 minutes | Explosion-proof + corrosion-resistant (e.g., stainless steel fire doors) |
| Data Centers | 60+ minutes | Electromagnetic shielding (to prevent data loss during fires) |
(2) Integration with Other Fire Protection Systems
- Linked to Fire Alarms: Doors close automatically when smoke detectors activate.
- Coordinated with Smoke Exhaust Systems: After sealing, smoke exhaust systems engage to reduce toxic fumes.
- Smart Monitoring: IoT-enabled fire doors allow remote status checks (e.g., closed/damaged).
3. Future Trends and Innovative Technologies
(1) More Eco-Friendly Fireproof Materials
- Bio-Based Intumescent Strips: Research into renewable materials (e.g., plant fibers + flame retardants) to replace traditional chemicals.
- Halogen-Free Fire Coatings: Reduce toxic gas emissions during fires.
(2) Smart Fire-Rated Doors
- Embedded Sensors: Monitor temperature/smoke in real time and alert via Wi-Fi/5G.
- Self-Healing Seals: Minor damage triggers automatic material repair to restore sealing.
- AR/VR Fire Drills: Digital twin technology simulates door performance during fires.
(3) Adaptation to Extreme Environments
- Ultra-High-Temperature Doors: For aerospace, nuclear plants, etc. (e.g., 1000°C+ sustained burning).
- Waterproof + Fireproof Integration: For ships or coastal buildings to prevent corrosion.
4. Common Consumer Questions (Q&A)
Q1: Can fire doors completely stop fire spread?
→ No, but they buy critical escape time (e.g., 30/60 minutes), depending on the fire rating.
Q2: Are timber fire doors truly effective?
→ Yes, but only if specially treated (e.g., flame-retardant impregnation)—not ordinary wooden doors.
Q3: Do fire doors require regular maintenance?
→ Yes! Check for aging intumescent strips, loose hinges, etc., or they may fail during a fire.
Summarize：Heat causes all materials to expand. In conventional doors, this thermal deformation compromises sealing and alignment. However, YK fire doors are engineered with compensation devices and temperature-resistant hinges that maintain structural alignment despite fluctuations in heat. This ensures the steel fire door remains fully operational and continues to perform its barrier function when it matters most.
Door bottoms often feature drop seals or flexible expansion gaps to account for vertical displacement. Combined with reinforced cores, these features keep the door tightly shut and smoke-proof even during prolonged exposure to high temperatures.
4. Automated Locking and Closing Mechanisms

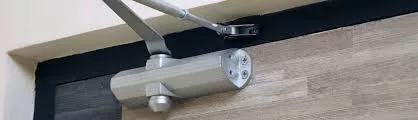

For maximum effectiveness, fire doors must close automatically during an emergency. Our fire-rated door sets come standard with self-closing systems, such as hydraulic door closers, spring hinges, or electromagnetic hold-open devices. When smoke is detected or fire alarms trigger, these systems activate, causing the metal fire door to close promptly and securely.
The locking mechanism is equally vital. Specialized fire-rated locks ensure the door remains latched under pressure, resisting blast forces and thermal stress without failure. Some models include panic bars or fire-rated lever handles that enable safe evacuation while still maintaining compartmentalization.
Conclusion: Fire-Rated Doors – The Silent Guardians of Safety
Fire-rated doors are far more than just passive barriers—they are meticulously engineered life-saving systems designed to compartmentalize flames, block toxic smoke, and buy precious time for evacuation and firefighting. As demonstrated, their effectiveness lies in a combination of fire-resistant materials, intumescent sealing technology, heat-compensating structural design, and automated closing mechanisms, all working in unison to uphold safety during emergencies.
At YK Door Industry Co., Ltd., we take pride in manufacturing steel fire doors that meet and exceed global standards, ensuring reliable protection for commercial, industrial, and residential spaces. Whether it’s a 30-minute FD30 door for an office corridor or a 120-minute FD120 door for high-risk environments, our commitment to precision engineering and rigorous testing guarantees performance when it matters most.
Fire safety is not optional—it’s a necessity. By understanding how fire-rated doors function and ensuring proper installation, maintenance, and compliance, building owners and managers can significantly enhance occupant safety and reduce fire-related risks.
For more insights on fire door standards, innovations, or custom solutions, contact YK Door today—because when it comes to fire protection, every second counts.
