Fire Door Ratings: Understand Class A, B, and C fire-rated doors, their fire resistance durations, key applications, and why GD Door Industry is your trusted supplier.
When it comes to fire safety, the importance of fire door ratings cannot be overstated. Fire-rated doors are crucial components in maintaining safety in residential, commercial, and industrial buildings. They help compartmentalize fire and smoke, protect escape routes, and safeguard lives and property. This guide explores the key classifications of fire doors as outlined by NFPA 80 – Standard for Fire Doors and Other Opening Protectives, offering insights for suppliers, contractors, and building owners alike.
What Are Fire Door Ratings?
Fire door ratings, as defined by NFPA 80, classify fire-rated door assemblies into five categories based on their ability to withstand fire. Ratings are expressed in hours or minutes and may include alphabetical designations, although the industry increasingly emphasizes hourly ratings for clarity. For instance, B-label fire resistance doors may offer either 60-minute or 90-minute protection, making them versatile choices for different applications.
Understanding these ratings helps in specifying the right fire-rated doors for your project. Proper selection ensures compliance with fire safety regulations while enhancing the overall safety of the building.
Breakdown of Fire Door Classifications
- Class A Fire-Rated Doors:
These doors are installed in fire walls or walls dividing buildings into separate fire areas, usually requiring a 3-hour fire resistance rating. In rare cases, walls needing 4-hour protection may call for two doors rated at 3 hours each. This can pose design challenges, especially when considering accessibility and egress compliance.
- Class B Fire Resistance Doors:
Commonly found in stairwell enclosures and shaft openings, Class B fire doors typically require a 90-minute fire rating. In some cases, 60-minute fire-rated doors are also acceptable. For example, the International Building Code (IBC) mandates 2-hour walls and 90-minute fire doors for stairs connecting four or more stories. For fewer stories, a 1-hour wall and 60-minute fire resistance doors are often sufficient. - Class C Fire-Rated Doors:
These doors are designed for walls with fire resistance ratings of 1 hour or less, such as those separating rooms from corridors. Depending on the application, 45-minute fire-rated doors may be required, especially in hazardous areas or incidental use spaces. Additionally, 20-minute doors, sometimes referred to as smoke doors, are used in corridors where smoke control is a primary concern. - Class D and Class E Fire Doors:
Exterior walls exposed to severe or moderate fire risk from outside the building require specialized fire-rated doors. Class D doors often have 90-minute ratings, while Class E doors typically have 45-minute ratings. Though less common, these applications are critical in certain projects and environments.
Why Fire-Rated Doors Are Essential
Selecting the appropriate fire-rated door isn’t just about meeting regulatory standards; it’s about ensuring comprehensive fire safety. High-quality fire resistance doors, like those offered by Guangdun Door Industry Co., Ltd., play a pivotal role in protecting lives and property. Our fire-rated doors are engineered for durability and performance, providing 30-minute to 90-minute fire resistance tailored to diverse needs.
Moreover, understanding where these doors are required—based on building codes like the IBC or NFPA Life Safety Code—ensures compliance and optimal safety. For instance, tables such as IBC Table 716.5 and NFPA 8.3.4.2 provide detailed guidance on required ratings for various fire-resistant assemblies.
Optimized Article: Fire Door Ratings Explained
Fire doors play a crucial role in enhancing building safety by containing fire and smoke, thereby ensuring occupants have more time to evacuate. Understanding fire door ratings is essential when selecting, installing, or maintaining these protective assemblies. The ratings assigned to fire-rated doors, which comply with NFPA 80 and other international standards, indicate their ability to withstand fire for a specified period. This article provides an in-depth exploration of the classification and practical applications of fire-rated doors, helping you make informed decisions.
Fire Door and Wall Ratings: The Basics
Basic Fire Door, Fire Door Frame, Transom/Sidelight Frame, and Window Frame Requirements
A fire door rating is typically based on the time a door can withstand fire conditions, usually expressed in minutes, and is generally lower than the fire rating of the wall it is installed in, meaning a 1-hour wall might require a 3/4-hour fire door; the specific rating depends on the building code and the intended use of the door and wall combination; key factors include the type of occupancy, the location of the door, and the level of fire protection required.
In many cases, the fire door assembly’s rating is ¾ of the rating of the wall it is installed in. However, this is not a universal rule. For example, the International Building Code (IBC) mandates that a 3-hour fire wall should have a 3-hour door, while a 1-hour corridor wall can be equipped with a 20-minute fire-rated door. The rationale for such differences lies in the lower fuel load typically adjacent to swinging doors compared to walls. To preserve a wall’s integrity when a fire door is removed or no longer in use, NFPA 80 requires the opening to be filled.
Practical Considerations for Fire Resistance Doors
- Special Exceptions: Some locations, such as healthcare facilities, may have exceptions where fire-rated door assemblies aren’t required, even in fire-resistant walls. Understanding these exceptions ensures compliance without over-specifying.
- Labeling and Maintenance: Fire door labels, which indicate the rating, must remain legible throughout the product’s lifespan. Regular inspections ensure compliance and reliability.
- Temperature-Rise Ratings: Certain environments, such as stairwells in non-sprinklered buildings, may require fire doors with temperature-rise ratings. This additional specification is critical in limiting heat transfer during a fire.
Fire Resistance Testing Standards

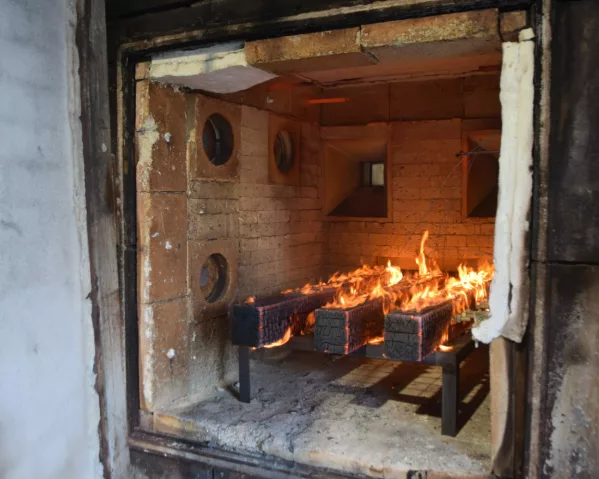

Fire-rated doors undergo rigorous testing to verify their performance under fire conditions. Common standards include UL 10C and NFPA 252 for fire-protection ratings, and UL 263 or ASTM E119 for fire-resistance ratings. While most doors are designed to contain fire for 20, 60, or 90 minutes, assemblies like transom and sidelight frames may require higher fire-resistance ratings. These assemblies are often subjected to more stringent tests, ensuring they meet the unique demands of modern architecture.
Key Insights into Fire-Protective Assemblies
- Design Flexibility: Fire-rated doors can be tailored to meet various architectural needs, including sidelight frames and fire barriers. When openings exceed the 25% limit set by the IBC, additional considerations may be necessary.
- Compliance with Local Codes: While NFPA 80 provides a framework, local building codes often dictate specific requirements. Collaborating with code officials ensures all fire door assemblies meet jurisdictional regulations.
- Enhanced Safety Measures: Modern fire doors often combine fire protection with features like smoke seals and acoustic control, making them versatile solutions for various building types.
A Friendly Reminder
Fire-rated doors are more than just code requirements—they are life-saving components that protect people and property. Whether you’re planning a new project or maintaining an existing one, investing in quality fire resistance doors is always a wise decision. If you’re unsure about the right fire-rated door for your needs, consult a trusted fire door supplier to ensure your building is up to code and adequately protected.
Fire Door Ratings: A Comprehensive Guide
Fire doors are essential components of fire protection in buildings, acting as a crucial barrier to prevent the spread of fire and smoke. These fire-rated doors are designed not only to withstand high temperatures but also to maintain structural integrity, provide insulation, and limit the penetration of smoke. They are particularly valuable in ensuring safe evacuation during a fire emergency, automatically closing once people pass through. At GD Door Industry, we specialize in high-quality fire resistance doors, offering various types to meet diverse needs.
Fire Door Classifications
Fire doors are typically categorized by their fire resistance ratings, measured in hours. In China, the traditional classifications include Class A, Class B, and Class C fire doors, each with specific applications and fire resistance durations. The newer national standards have expanded these categories into A-Class, B-Class, and C-Class, with additional subcategories and requirements. Let’s explore these classifications in detail.
Class A Fire Doors: The Highest Level of Protection
Class A fire-rated doors provide a fire resistance duration of no less than 1.5 hours, making them the highest-rated option available. These doors are ideal for critical applications such as:
- Fire walls and barriers (e.g., in atriums and fire compartments).
- High-density areas like theaters and auditoriums.
- Important storage rooms (e.g., archives and confidential offices).
- Fire-related equipment rooms, including transformer rooms and electrical distribution rooms.
At GD Door Industry, we maintain a robust inventory of 797 Class A fire doors, available in various materials like steel, stainless steel, and wood-steel composites.
Class B Fire Doors: Moderate Fire Resistance
With a fire resistance rating of at least 1 hour, Class B fire doors balance performance and cost-effectiveness. Common applications include:
- Exit doors for enclosed stairwells and smoke-proof lobbies.
- Rooms with higher fire risks, such as kitchens or storage areas in public buildings.
- Equipment rooms like fire control centers.
- Rooms for vulnerable groups, such as hospital operating rooms and maternity wards.
Our current stock includes 422 Class B fire doors, ensuring immediate availability for projects requiring prompt delivery.
Class C Fire Doors: Essential for Specific Uses
Class C fire doors provide a minimum fire resistance duration of 0.5 hours and are often used in less demanding applications, such as:
- Vertical shaft protection, including duct and pipe enclosures.
- Outdoor equipment rooms like substations.
GD Door Industry’s inventory features 341 Class C fire doors, catering to projects with specific needs.
New National Standards for Fire Doors
The updated Chinese standards refine fire door classifications further:
- A-Class (Fully Insulated Fire Doors): These doors meet both insulation and integrity requirements, with fire resistance ratings of 0.5h, 1.0h, 1.5h, 2.0h, or 3.0h.
- B-Class (Partially Insulated Fire Doors): Designed to offer partial insulation, these doors have an insulation rating of 0.5h and integrity ratings ranging from 1.0h to 3.0h.
- C-Class (Non-Insulated Fire Doors): These focus solely on fire integrity without insulation requirements, with ratings from 1.0h to 3.0h.
This flexibility ensures that architects and engineers can choose fire doors tailored to their specific project requirements.
Production Capacity and Commitment to Excellence
At GD Door Industry, we have streamlined our production processes to achieve an impressive monthly output of 14,000 fire-rated doors, setting new benchmarks in efficiency and quality. By continuously optimizing our supply chain and reducing costs, we are committed to providing our customers with high-value solutions for fire protection.
Why Choose GD Door Industry?
- Extensive Inventory: Whether you need Class A, B, or C fire doors, we have a wide range of ready-to-ship options.
- Versatile Materials: From durable steel to aesthetically pleasing wood-steel composites, our fire doors meet both functional and design requirements.
- Global Expertise: With over a decade of experience, we have become a trusted fire-rated door supplier to projects worldwide.
Conclusion
Understanding fire door ratings and their applications is essential for ensuring safety and compliance in building design. GD Door Industry is proud to offer a comprehensive range of fire-resistance doors, ready to meet the challenges of modern construction. Whether you are sourcing for a commercial project or a residential development, our team is here to help you find the perfect solution.
For inquiries or to learn more about our inventory, contact GD Door Industry today!
